Compliance Standard : IP 70 – Determination of Viscosity of Petroleum Products by Redwood Viscometer, IS 1448 (P:25), ASTM equivalent reference methods (for viscosity comparison)
Application : Redwood Viscometer is used for determination of the viscosity of petroleum products such as lubricating oils, fuel oils, bitumen emulsions, and other viscous materials by measuring the flow time through a standard orifice at a specified temperature. Widely used in petroleum laboratories, lubricant industries, refineries, research labs, and quality control labs.
Â

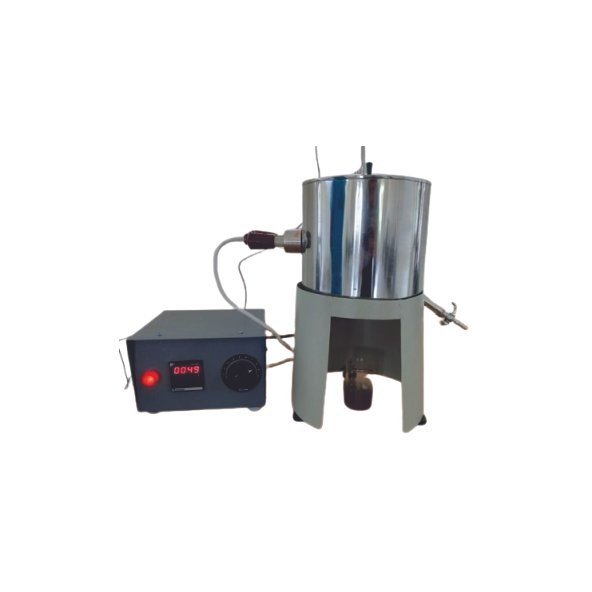

Product Description : The unit is supplied with thermometer supports and a stirring arrangement for uniform bath temperature. A brass Redwood cup is mounted inside the bath with a ball valve arrangement for releasing the test sample. The apparatus includes a receiver flask placed below the jet to collect the outflow. The heating unit is housed in a powder-coated body with controls for temperature regulation.
Technical Specifications
|
Parameter |
Specification |
|
Standard Followed |
IP 70 |
|
Bath Material |
Stainless steel |
|
Cup Material |
Brass Redwood cup |
|
Orifice |
Standard Redwood jet |
|
Temperature Control |
Energy regulator / Digital controller |
|
Heating |
Electric heater |
|
Temperature Range |
Ambient to 100°C (or higher as required) |
|
Stirring Arrangement |
Manual / motorized (model dependent) |
|
Receiver Flask |
50 ml / 100 ml receiver |
|
Body Construction |
Powder coated mild steel |
|
Power Supply |
230V AC, 50 Hz, Single Phase |
| Â | Â |
Apparatus Supplied
- Stainless steel oil bath with heater
- Brass Redwood cup with standard jet
- Ball valve / needle valve arrangement
- Thermometer holder
- Receiver flask (Kohlrausch type)
- Temperature control unit with regulator
- Instruction manual
Optional Accessories
- Redwood Thermometer (IP certified)
- Spare jet/orifice
- Spare Redwood cup
- Stirrer (motorized, optional)
- Calibration oil set
- Digital temperature indicator
Dimensions & Weight (Approx.)
|
Parameter |
Value |
|
Dimensions (L×W×H) |
300 × 300 × 500 mm |
|
Weight |
15 – 20 kg (Approx.) |
