Grease Penetrometer ASTM D217

Product Specifications

Compliance Standard : ASTM D217 – Standard Test Methods for Cone Penetration of Lubricating Grease,  IP 50 – Cone Penetration of Lubricating Grease,  ISO 2137 – Petroleum products – Lubricating grease – Determination of cone penetration
Application : The Grease Penetrometer is used for the determination of cone penetration of lubricating greases, which is a direct measure of grease consistency and NLGI grade. It is an essential instrument in petroleum laboratories, grease manufacturing units, lubricant quality control labs, R&D centers, and inspection agencies.

Applications include:

  • Determination of worked and unworked penetration of greases

  • Quality control and grading of lubricating greases

  • Evaluation of grease consistency changes after working

Product Description :  The apparatus consists of a rigid vertical stand, precision dial gauge, cone release mechanism, and sample platform. The design ensures smooth cone release, accurate vertical alignment, and repeatable results.
The instrument is suitable for unworked, worked (60 strokes), and prolonged worked penetration tests as specified in ASTM D217.

Technical Specifications

Type:

Grease Penetrometer

Test Method:

Cone penetration under gravity

Measurement Range:

0 – 400 penetration units

Resolution:

Analog

Dial Gauge Accuracy:

±1 penetration unit

Cone Weight:

102.5 ± 0.05 g (as per standard)

Total Assembly Weight (Cone + Shaft):

150 g (standard ASTM cone)

Penetration Time:

5 seconds ± 0.1 second

Release Mechanism:

Automatic

Construction:

Heavy-duty base with corrosion-resistant finish



Apparatus is Supplied

  • Grease Penetrometer main unit with stand

  • Precision dial gauge

  • Standard ASTM cone with shaft

  • Sample cup platform

  • Power supply (for electronic timer / release mechanism, if applicable)

  • Operating instruction manual

Optional Accessories

  • Grease Worker (ASTM D217 – 60 strokes)

  • Digital timer with automatic cone release

  • Additional penetration cones

  • Sample cups (standard and oversized)

  • Temperature-controlled grease test bath

  • Calibration weight set

Dimensions and Weight (Approx.)

Overall Height:

520 – 580 mm

Base Dimensions:

260 × 180 mm

Net Weight:

14 – 18 kg (depending on model)

Frequently Asked Questions

  • Are your products competitive?

    Yes, we offer high quality at competitive prices.

  • How can I choose the right one?

    Based on your test standards, budget, and usage needs—contact us for guidance.

  • How about packing? Will goods be damaged?

    Strong export packing ensures safe delivery with minimal risk.

  • How do I pay for my first purchase?

    We accept bank transfers (NEFT/RTGS), UPI, and major online payment methods. Payment terms may vary depending on the order type.

  • How to deliver?

    By air, sea, or courier as per your requirement.

  • How long is the guarantee period?

    The guarantee period is 1 years due to the product quality problems itself.

  • What if I have difficulty using the instrument?

    We provide manuals, online support, and training if needed.

  • When can I receive the goods?

    Delivery of in-stock items typically takes 2-3 weeks, customized orders may take 3-4 weeks depending.

  • What services can you provide?

    Online support through email, telephone, Whatsapp or other communication method; onsite taining and installation if you need; filed maintenance and repair, technical video support, etc

Product Gallery

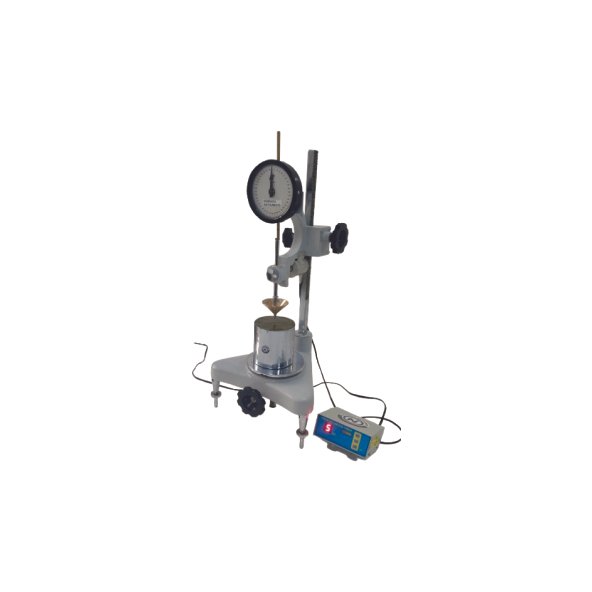

Grease Penetrometer ASTM D217
